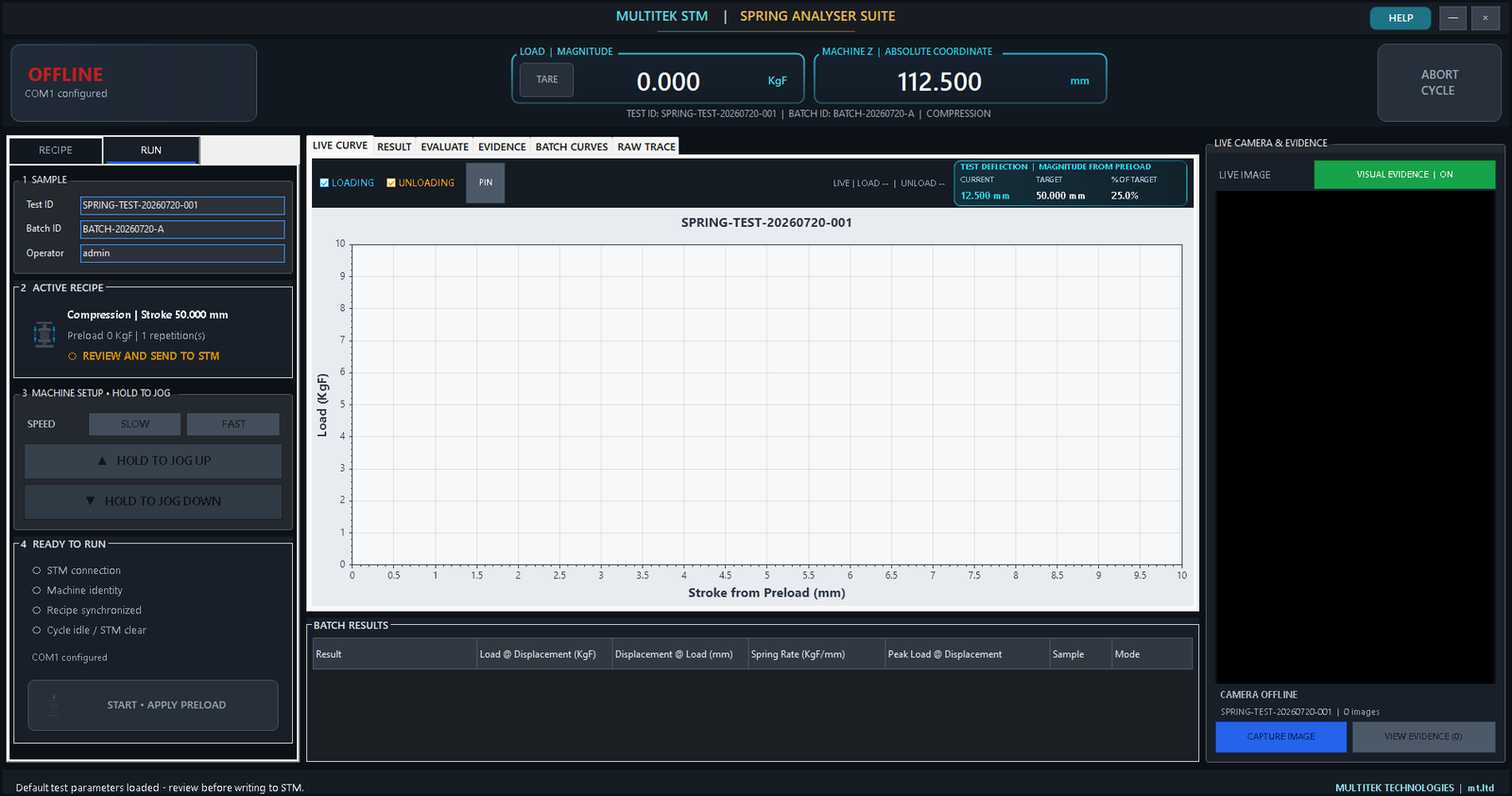

Same-snapshot display
The HUD, curve, raw trace, recovery and evidence correlation use the same accepted telemetry snapshot.
STM-X Software
The operator sees the test, the datum and the evidence—not a maze of controls.
A Windows workspace for recipe control, live acquisition, batch results, curve analysis, visual evidence and reporting.
Request a software demonstration
Recipe verification
Motion and evaluation settings remain explicit and guarded before a cycle can be treated as valid.
Batch workspace
Save samples, compare curves and retain the batch while the next specimen is prepared.
Interruption integrity
Telemetry loss, aborts and incomplete repetitions remain visible rather than becoming certifiable results.

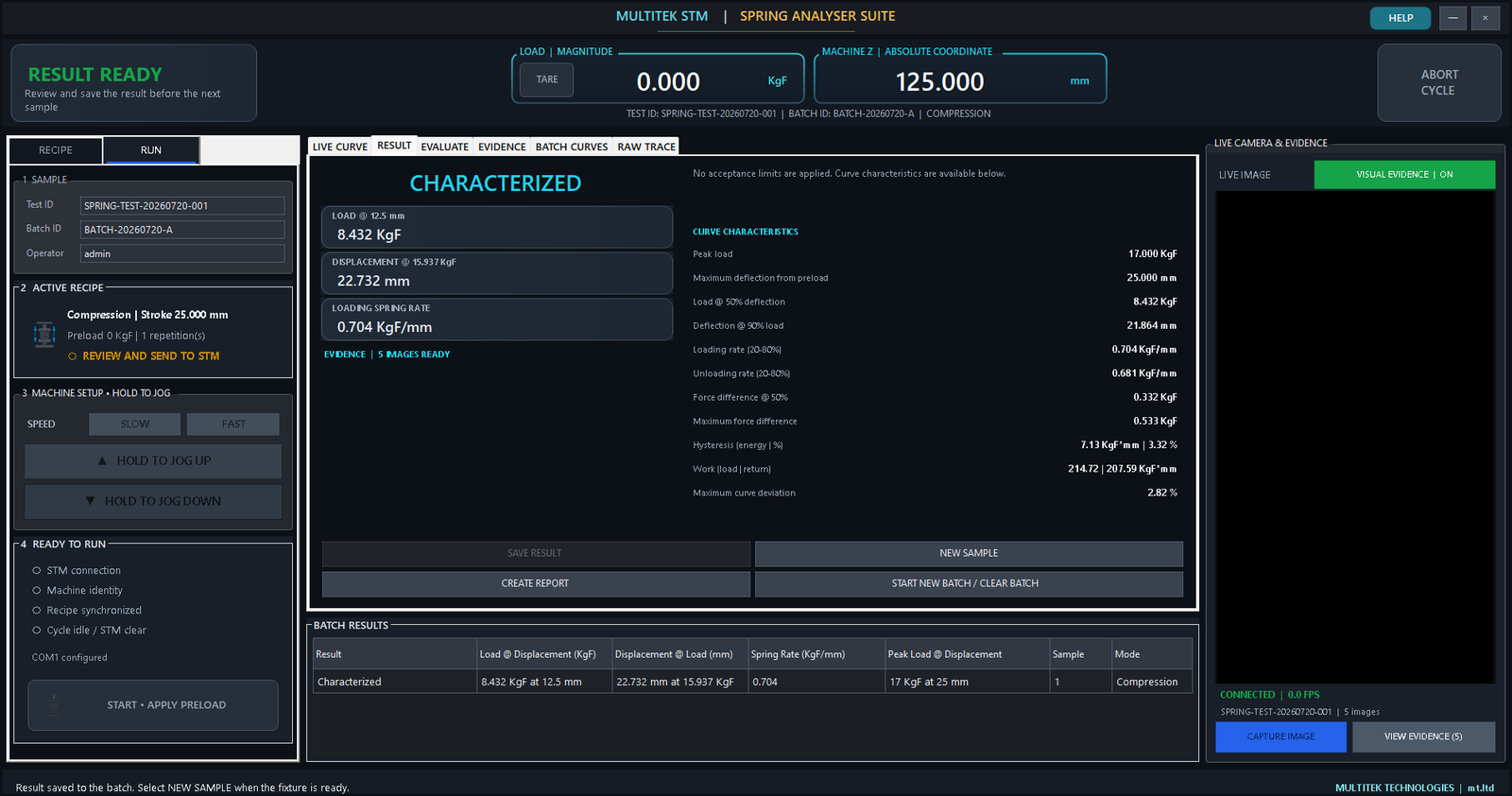

Result workspace
Characterize first. Evaluate against approved limits when they exist.
STM-X separates observed curve characteristics from acceptance. That makes a characterization report honest when no specification limits were entered and a pass/fail result explicit when they were.
- Load at displacement and displacement at load
- Loading and return rate across defined intervals
- Peak values, work and hysteresis
- Batch rows and overlaid curves
- Excel/PDF report generation

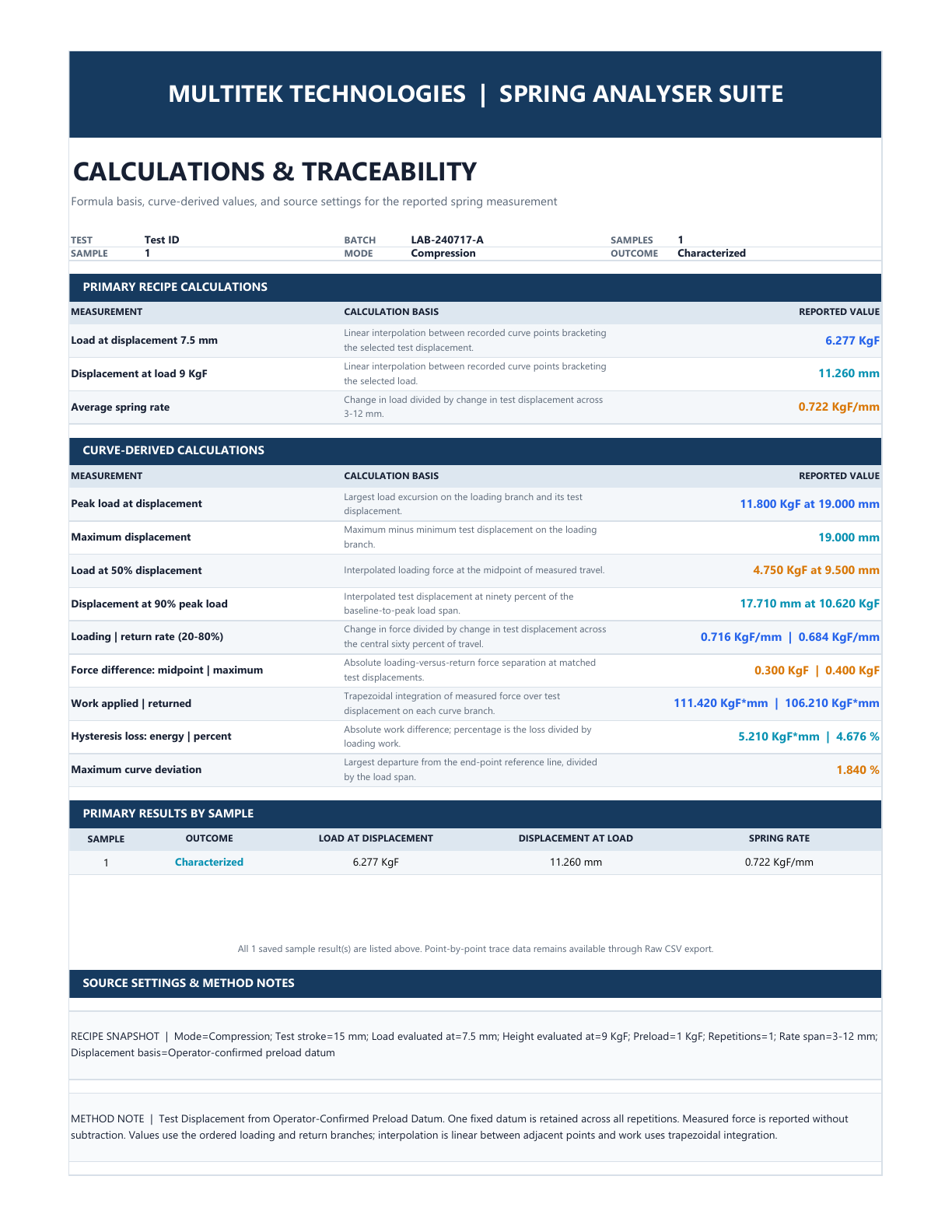

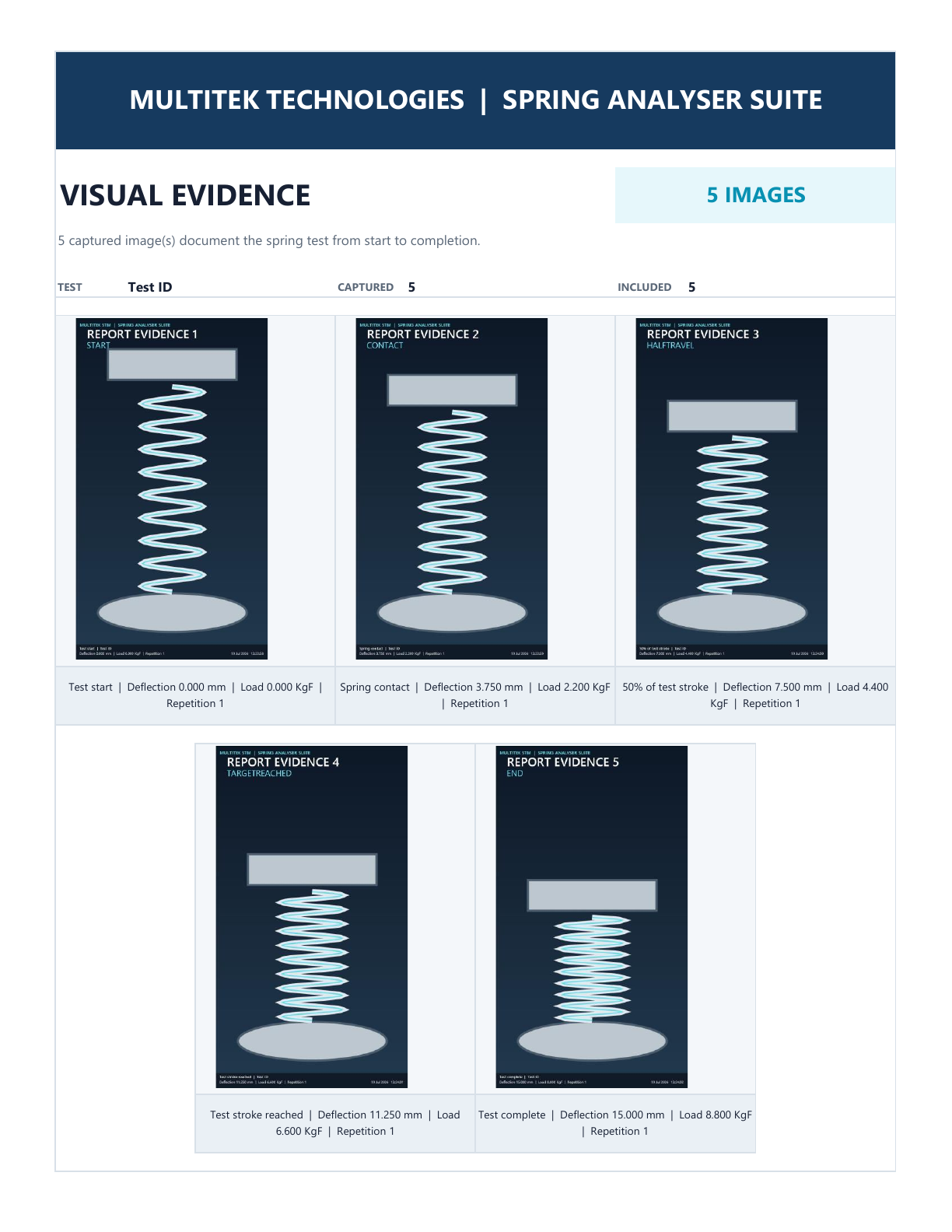

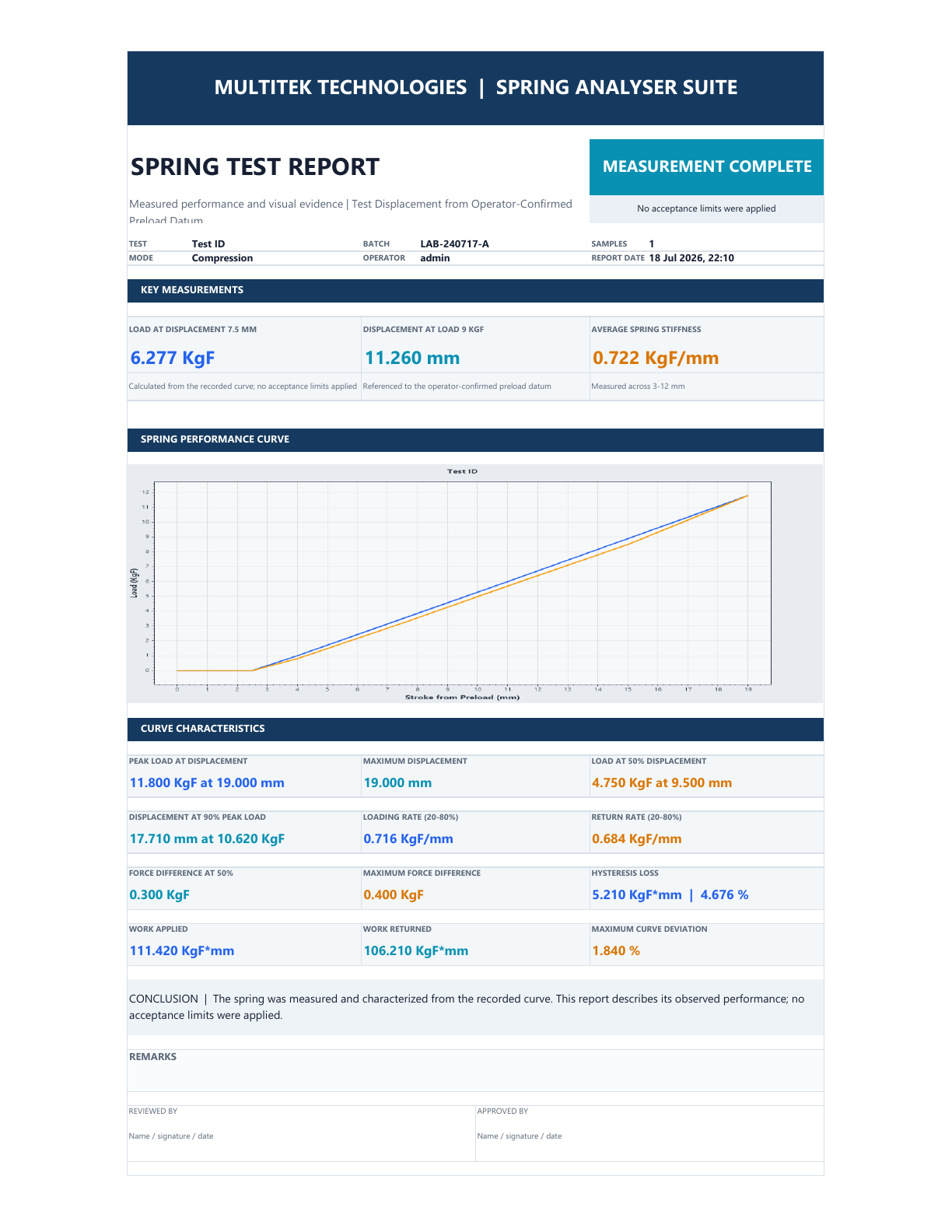

Three-page reporting
Summary, evidence and traceability stay together
Report composition uses completed immutable data rather than reading values back from a live operator screen.
System requirements
Purpose-built for the commissioned STM-X machine.
The current production software targets Windows x64 and requires the Microsoft .NET 10 Windows Desktop Runtime x64. Machine identity, PLC communication, calibration and licensing are commissioned as one controlled installation.
Full requirementsProduction software
- Current version
- 1.0.0
- Platform
- Windows x64
- Runtime
- .NET 10 Desktop Runtime x64
- Modes
- Compression · Extension · Manual MPG
- Reports
- Excel · PDF · graph · raw export
